ESD
Es necesario, evitar la acumulación de cargas electrostáticas y garantizar una descarga "suave" definida que sea inocua para los componentes y controlada para las cargas incontroladas o desplazadas. Esto se consigue mediante un cuidadoso equipamiento personal y del lugar de trabajo.
Cuando se trata del equipo personal, la atención se centra en la ropa. El calzado disipador, una bata de trabajo conforme a las normas ESD y una muñequera funcional con toma de tierra son obligatorios para todos los empleados. La base del equipamiento del lugar de trabajo con protección ESD es un sistema de suelo disipador, bancos de trabajo y sillas disipadores, así como herramientas compatibles con ESD. Sin embargo, sólo se puede conseguir una protección eficaz contra la ESD si se combinan todas las medidas entre sí.
Abeba ESD slippers #7131132
The ABEBA Safety Half Shoe #7131132 is white and has a breathable inner lining with silver ions. Material & Properties Material: smooth leather Colour: white ESD-compliant according to DIN EN 61340 Breathable inner lining with silver ions Instep area with elastic band Slip-resistant PU outsole Replaceable Active Comfort insole (Art. 351620) CE, EN ISO 20347:2012, O2, FO, SRC Sole elevation possible Packaging 1 pair
ESD glove MAY®FIT
The ESD Glove MAY-Fit is a breathable ESD nylon glove with copper yarn and very high conductive properties. Material & Properties Material: 80% nylon / 20% copper yarn Length: depending on size approx. 210-243mm Thickness of fingertips: approx. 1.0mm Colour: Brown/White Breathable back of the hand Uncoated Elasticated cuff Can be worn on both sides Lint-free High wearing comfort ESD PSA CAT. II Surface resistance: approx. 10³ Ω EN 388 EN 61430-5-1&2 Performance levels: 0 1 3 1 prEN 61430:2014 Packaging 10 pairs in a bag 24 bags in a carton (240 pairs)

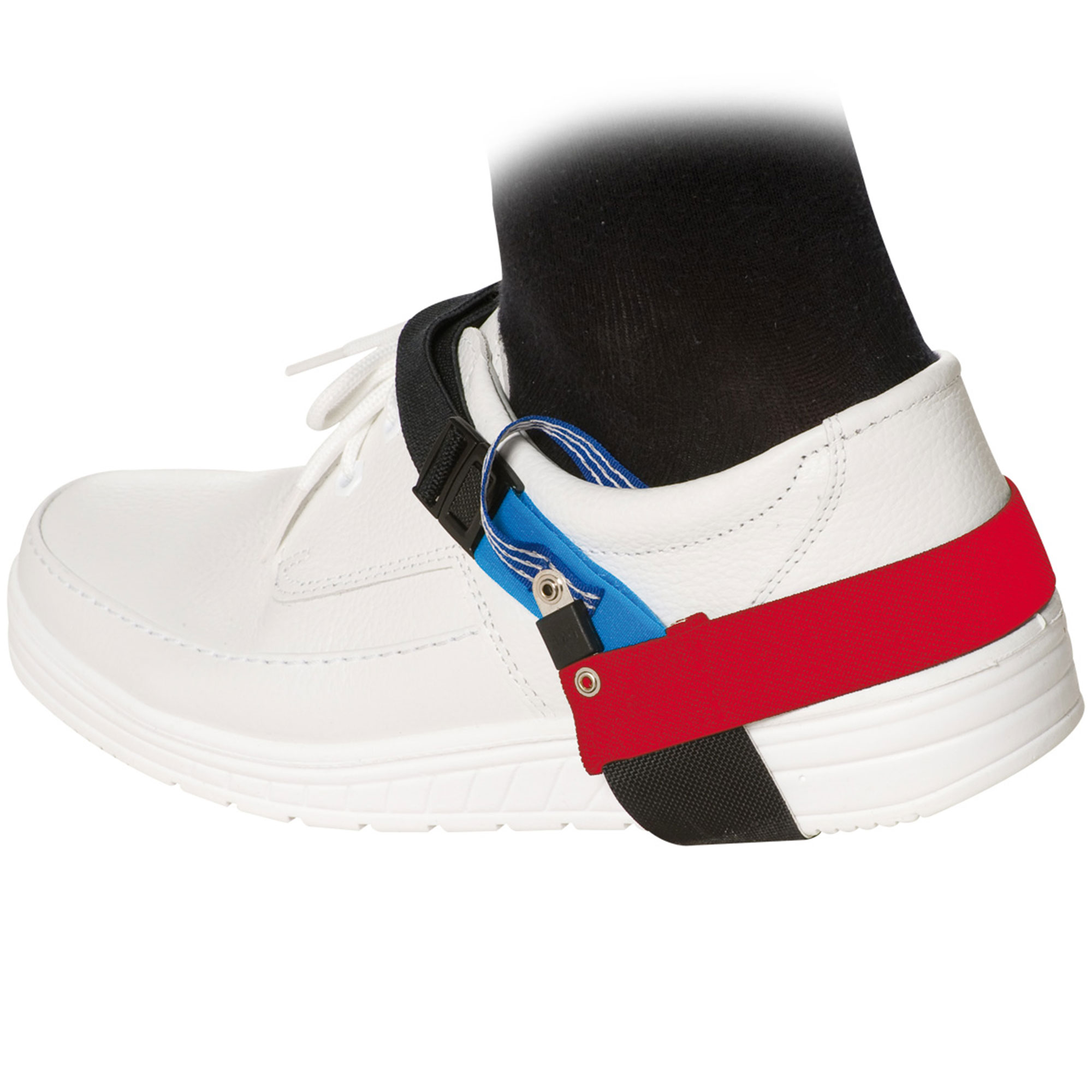

Men's/Women's ESD-compliant heel strap with adjustable clip fastening
for standard street shoes with flat heels with adjustable clip fastening 1 MΩ safety resistor Body-to-metal earth resistance Rgp: 1 x 10⁶ Ω
Han-Palm nylon glove
The Han-Palm, IAB’s own brand, is the perfect glove for working with smooth and slippery objects, made from seamless, lint-free nylon. The coated palm provides a better grip, whilst the uncoated back of the hand is breathable. Specifications Material: Nylon Palm polyurethane coated Size: 7/S - 11/XXL Colour: White, with coloured cuff Thickness: 1.00 mm ± 0.1 mm ISO Class: ISO 7 Packaging: 10 pairs in a bag 24 bags in a box (240 pairs) Areas of application: Automotive industry Precision assembly Construction Logistics Packaging Features Uncoated Hand-specific High wearing comfort / Excellent breathability Non-slip grip Low-linting Suitable as an underglove beneath disposable gloves Silicone-free Knitted cuff, color-coded by size excellent against water sweat preventive
ESD gloves MAY ® TOP
The May Top ESD glove is a breathable ESD nylon glove containing copper yarn and offering very high conductivity. It features a breathable back, ensuring a high level of comfort. Specifications Material: 80% nylon, 11.5% copper yarn, 5.5% elastane, 3% polyester; fingertips polyurethane-coated Size: 7/S - 11/XXL Colour: white/brown, with coloured cuff Thickness: 1.00 mm ± 0.1 mm Length: Approx. 210 – 243 mm depending on size Surface resistance: < 9.0 x 10² Ω Packaging: 10 pairs in a bag 24 bags in a box (240 pairs) Areas of application: Semiconductors Electronics Automotive industry Precision assembly Characteristics Coated fingertips Elasticated cuffs High climate comfort, breathable Low-pilling Knitted cuff, separate cuff colour per size
ESD glove MAY®PALM
The ESD Glove MAY-Palm is a breathable ESD nylon glove with copper yarn and very high conductive properties. Its palm is coated with polyurethane. Material & Properties Material: 80% Nylon / 20% Copper Yarn Material palm: Polyurethane Length: depending on size approx. 210-243mm Thickness of fingertips: approx. 1.0mm Colour: brown/white ESD PSA CAT. II Coated palm Elasticated cuff Breathable back of the hand Lint-free High wearing comfort Surface resistance: approx. 10³ Ω EN 388 EN 61430-5-1&2 Performance levels: 3 1 3 1 prEN 61430:2014 Packaging 10 pairs in a bag 24 pairs in a box (240 pairs)
SIMSTAT ESD Glove ® Top
The SIMSTAT® series is distinguished from conventional ESD gloves by the "sandwich fibre" used. Thanks to the innovative design, this is significantly more stable and durable than the coated polyamide fibre used in conventional ESD gloves. In the event of a fibre break in the sandwich fibre, there is a significantly lower risk of a short circuit in a component due to only 2 contact options. Material & Properties PU-coated fingertips Surface resistance: 1x1010 Ω Power levels: 0 1 3 1 Recommendation: ISO 7-9 Nylon-carbon fibre Length: 210-240 mm Very high climate comfort Low-linting Ideal protection for electronic components Silicone-free Packaging 10 Pairs per bag 24 bags per carton (240 Pairs)

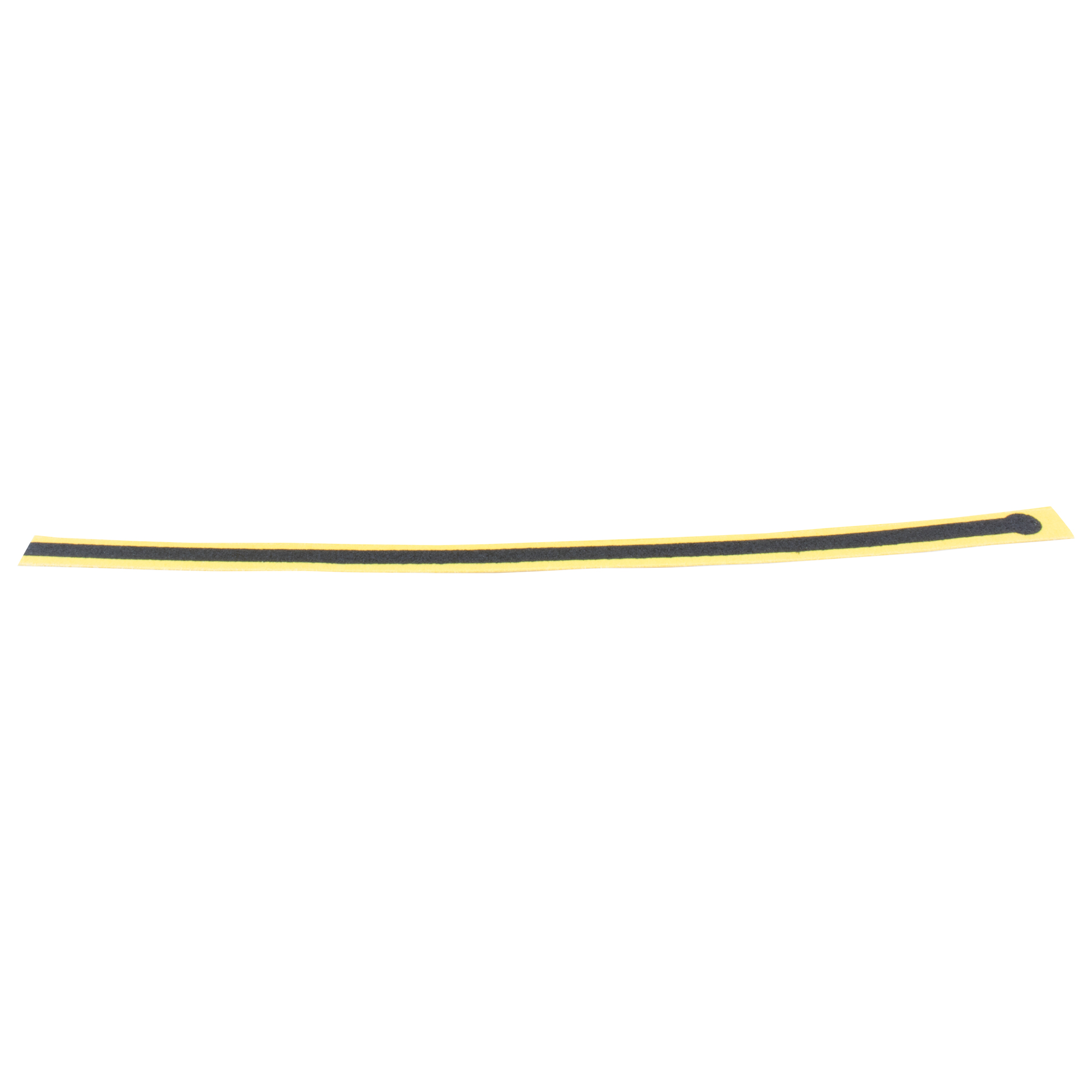

ESD disposable heel strap
For visitors to an EPA and short-term use For normal street shoes with flat heels Conductive fabric, self-adhesive To prevent static build-up whilst walking, heel straps should be worn on both shoes Discharge resistance: 10^3 –10^5 ohms Discharge time: 1000 V/100 V in less than 1 s Complies with ESD standard DIN EN 61340-5-1 Length: 300 mm Black, yellow
SIMSTAT ® Palm ESD Glove
The SIMSTAT ® -PALM series stands out from conventional ESD gloves thanks to the ‘sandwich fibre’ used in its construction. Thanks to its innovative construction, this is significantly more robust and durable than the coated polyamide fibre used in conventional ESD gloves. In the event of a fibre break in the sandwich fibre there is a considerably lower risk of a short circuit in a component due to only two possible points of contact. Specification Material: Beltron carbon-impregnated knitted nylon; palm coated with polyurethane Size: 6/XS - 12/XXXL Colour: Grey/white, with coloured cuff Thickness: 0.95 mm - 1.4 mm Length: approx. 205 mm – 265 mm depending on size ISO class: ISO 7 Contact resistance: < 1x10⁸ Ω Packaging: 10 pairs in a bag 24 bags in a box (240 pairs) Applications: Semiconductor and microelectronics manufacturing Assembly of electronic modules and printed circuit boards (PCBs) Manufacture of smartphones, computers, and electronic devices Features Without silicone; PU-coated palm Knitted cuffs, separate cuff colour for each size Outstanding comfort and perfect fit (hand-specific) Very high climate comfort and high tactile sensitivity Low lint

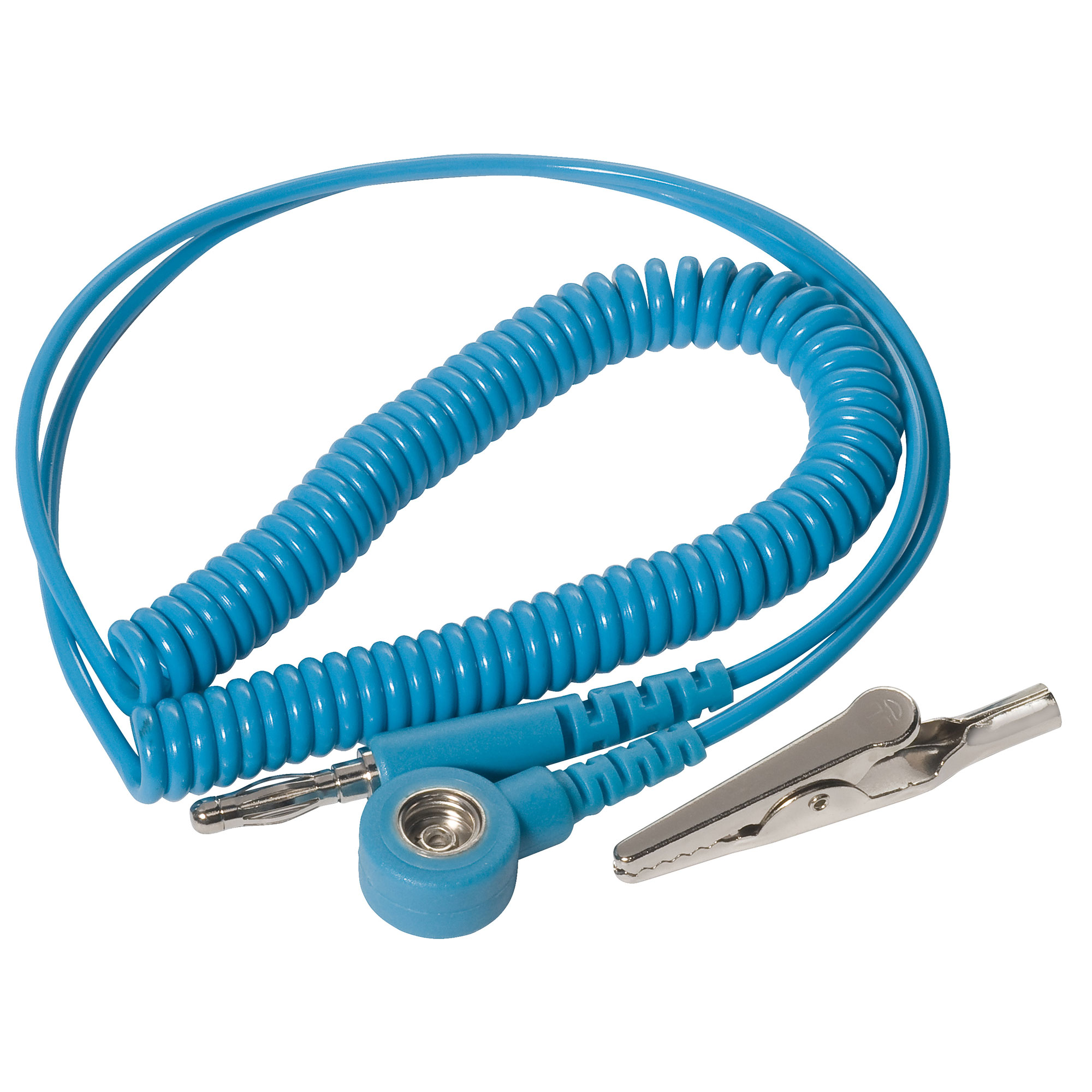

ESD coiled cable, banana plug with earth contact
Earth terminal connection, banana plug 1 MΩ safety resistor Highly flexible, 2.4 m long Colour: Light blue Resistance: 2 x 10⁶ Ω
SIMSTAT ® Fit ESD Gloves
The Simstat Fit ESD glove is a protective glove with a special Belltron fibre. Due to its construction, this "sandwich fibre" is much more stable and durable than the coated polyamide fibre used in conventional ESD gloves. In the event of a fibre breakage of the sandwich fibre, there is a considerably lower risk of a short circuit in a component due to only 2 contact possibilities. Material & properties Material: Nylon/ Incorporated carbon fibre Length Depending on size approx. 210 - 240 mm ISO 7 KAT II Silicone-free Without coating Hand-specific Low-linting Coloured cuff Very high climate comfort high tactile sensitivity Surface resistance: 5x109 Ω Contact resistance: < 1.0 x 108 Ω Power levels: 0 1 3 1 Low lint Ideal protection for electronic components Packaging 10 pairs per bag 24 bags per box (240 pairs) Size: XS-XXXL
ESD Clog Abeba 37620
Abeba 37620 ESD clogs white patent from the Easy series. Size 35-43 CE, EN ISO 20347:2012, OB, FO,A,E, SRC A-micro, white Fixed heel strap, adjustable Slip-resistant outsole Replaceable acc Wave insole (Art. 3573) Sanitized® treated (odour and bacteria-inhibiting) ESD-compliant in accordance with DIN EN 61340

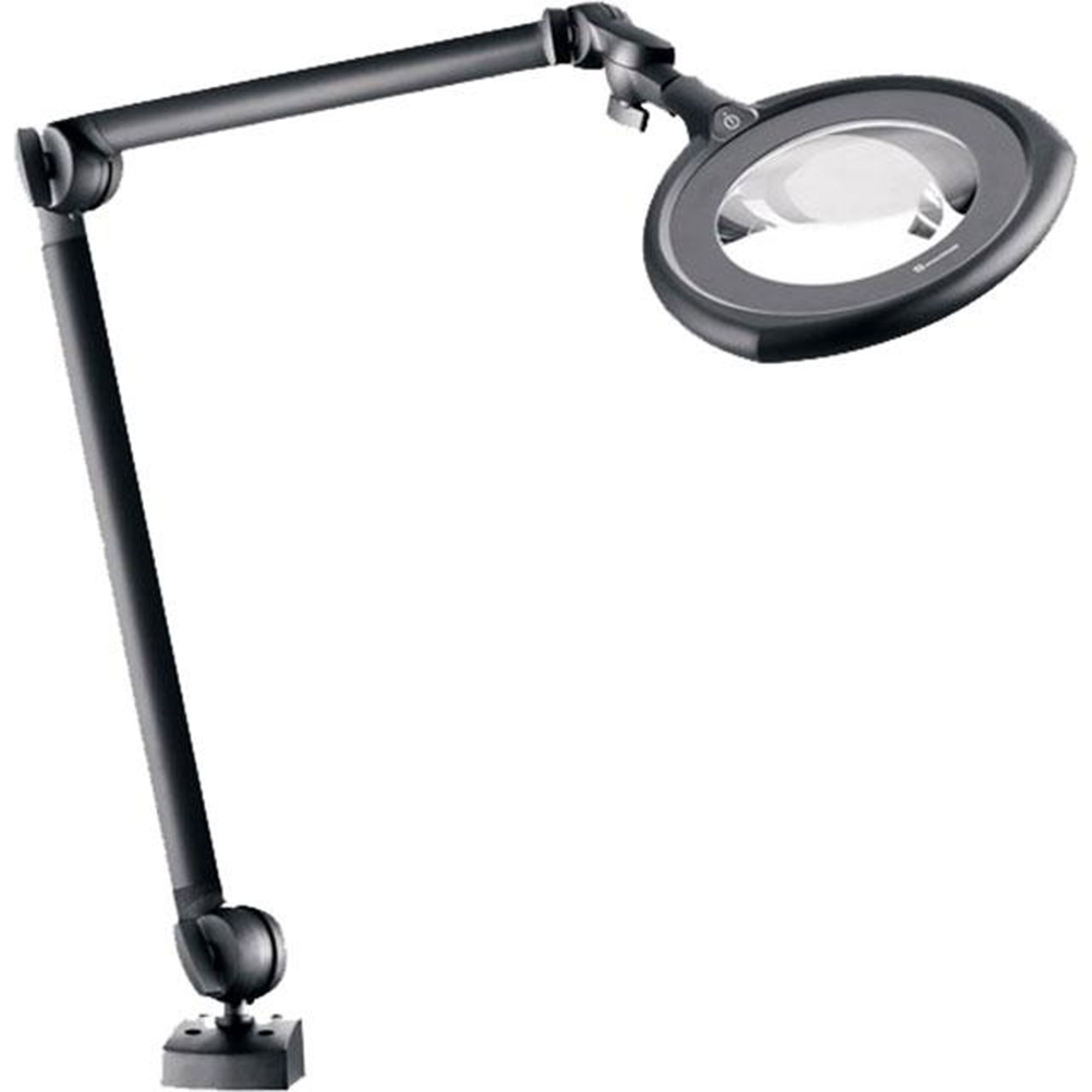

TEVISIO ESD magnifying lamp
48 LEDs for 6000 lx at 14 W power consumption Colour temperature: neutral white Glass lens with 3.5 dioptres and conductive coating 3D-head joint for precise positioning Multifunctional switching Earthing via 10 mm push-button With ESD marking Boom: 400 mm x 384 mm
Han-Top nylon glove
The Han-Top, IAB's own brand, is the perfect glove for assembling very small parts. The glove is made of high-quality, seamless nylon. The coated fingertips provide a better grip without sacrificing breathability. Material & properties Material: nylon / polyurethane Length approx. 240 mm Colour: white PU-coated fingertips ISO 7 PPE CAT. II Hand-specific High climate comfort and high tactile sensitivity Non-slip Low-linting Abrasion resistant Silicone-free Coloured cuff to differentiate between sizes Packaging 10 pairs per bag 24 bags per box (240 pairs)

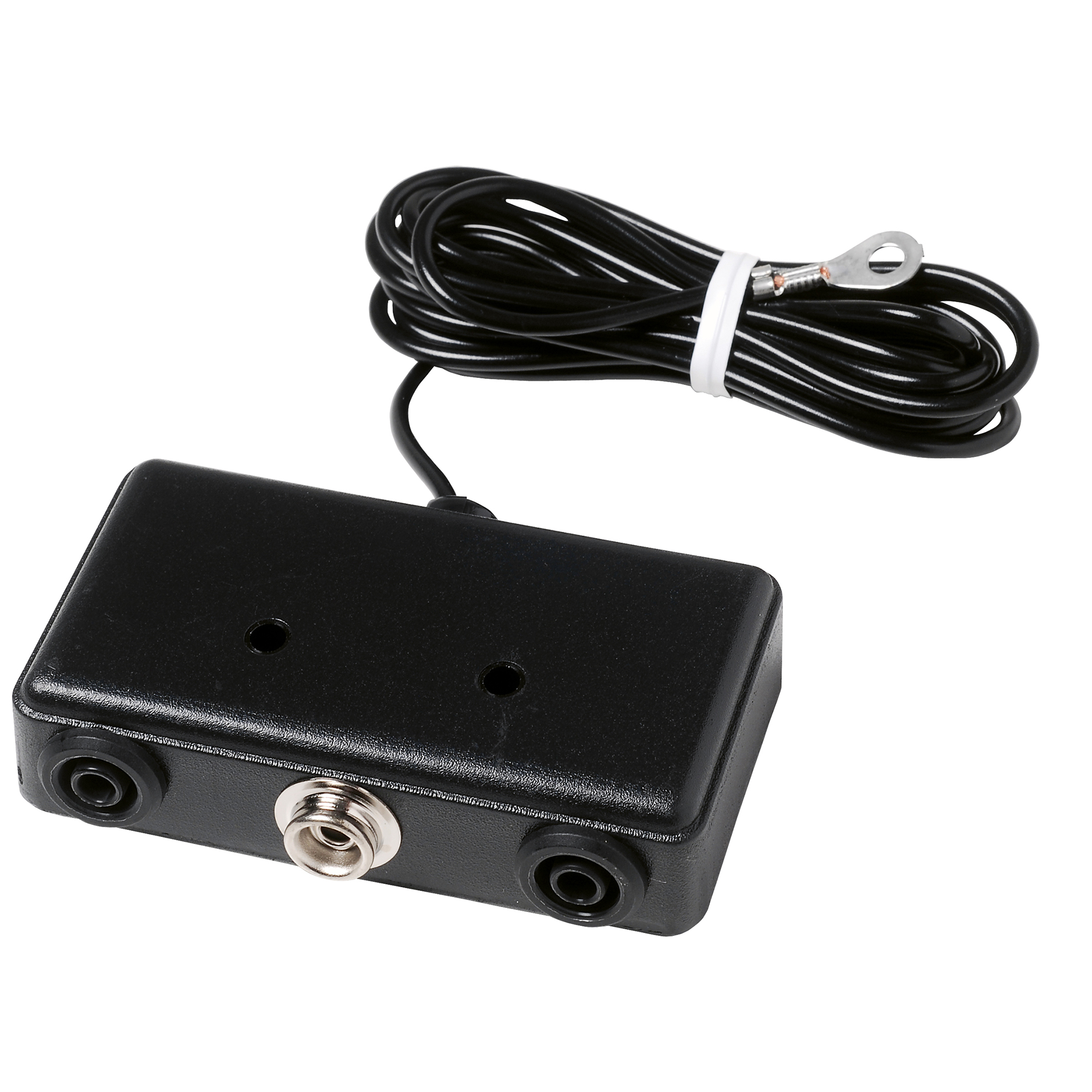

ESD earthing box
10 mm push-button connector and 4 mm safety socket 1 MΩ safety resistor per connector Colour: Black

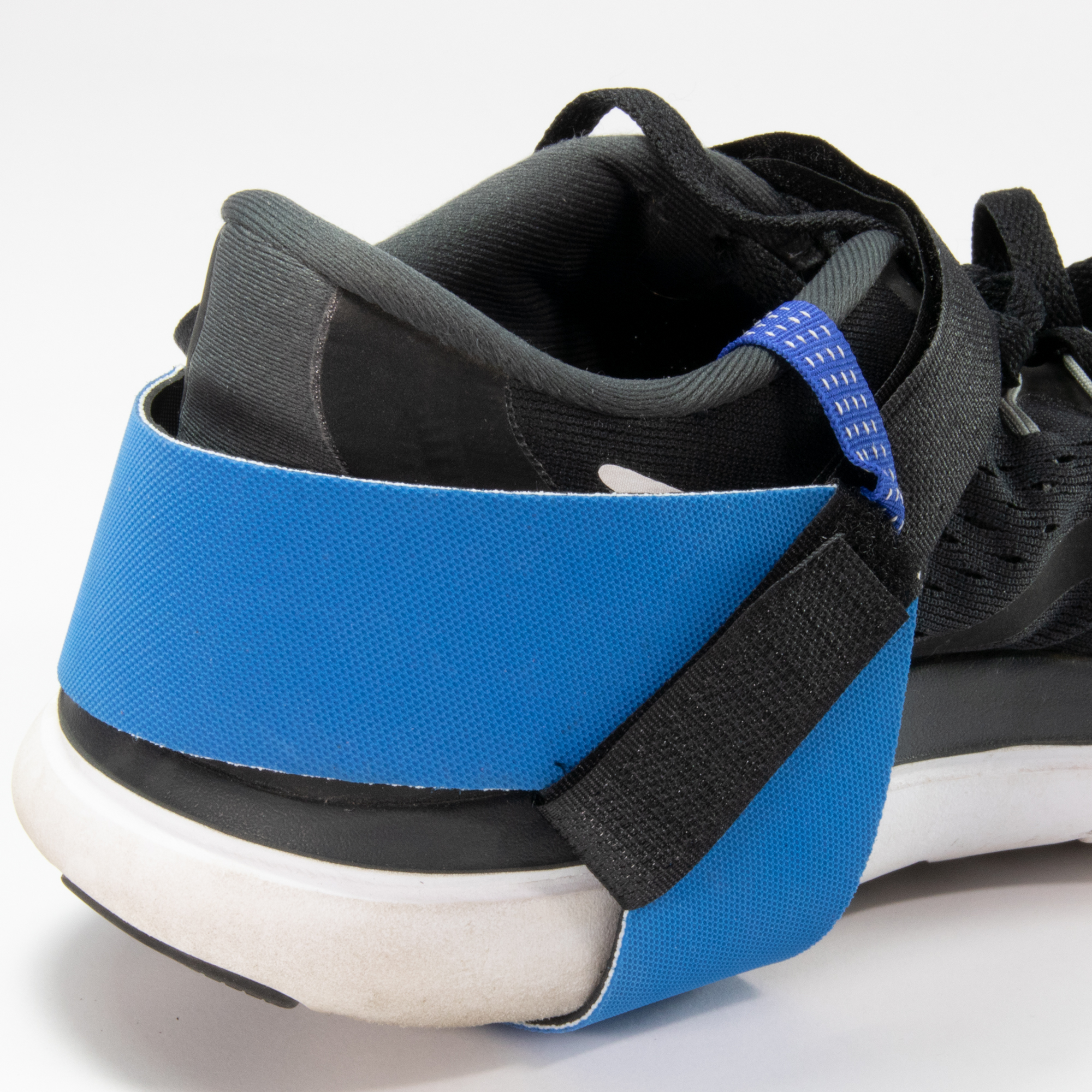

Men's/Women's ESD-rated heel strap with Velcro fastening
The permanent heel strap for men’s shoes provides continuous personal earthing in ESD protection zones fitted with ESD flooring. To prevent static build-up whilst walking, the permanent heel straps should be worn on both shoes. For standard street shoes with flat heels Adjustable Velcro fastening Specific resistance 1x10^6 ohms Discharge time 0.1 seconds Synthetic rubber Blue, Black

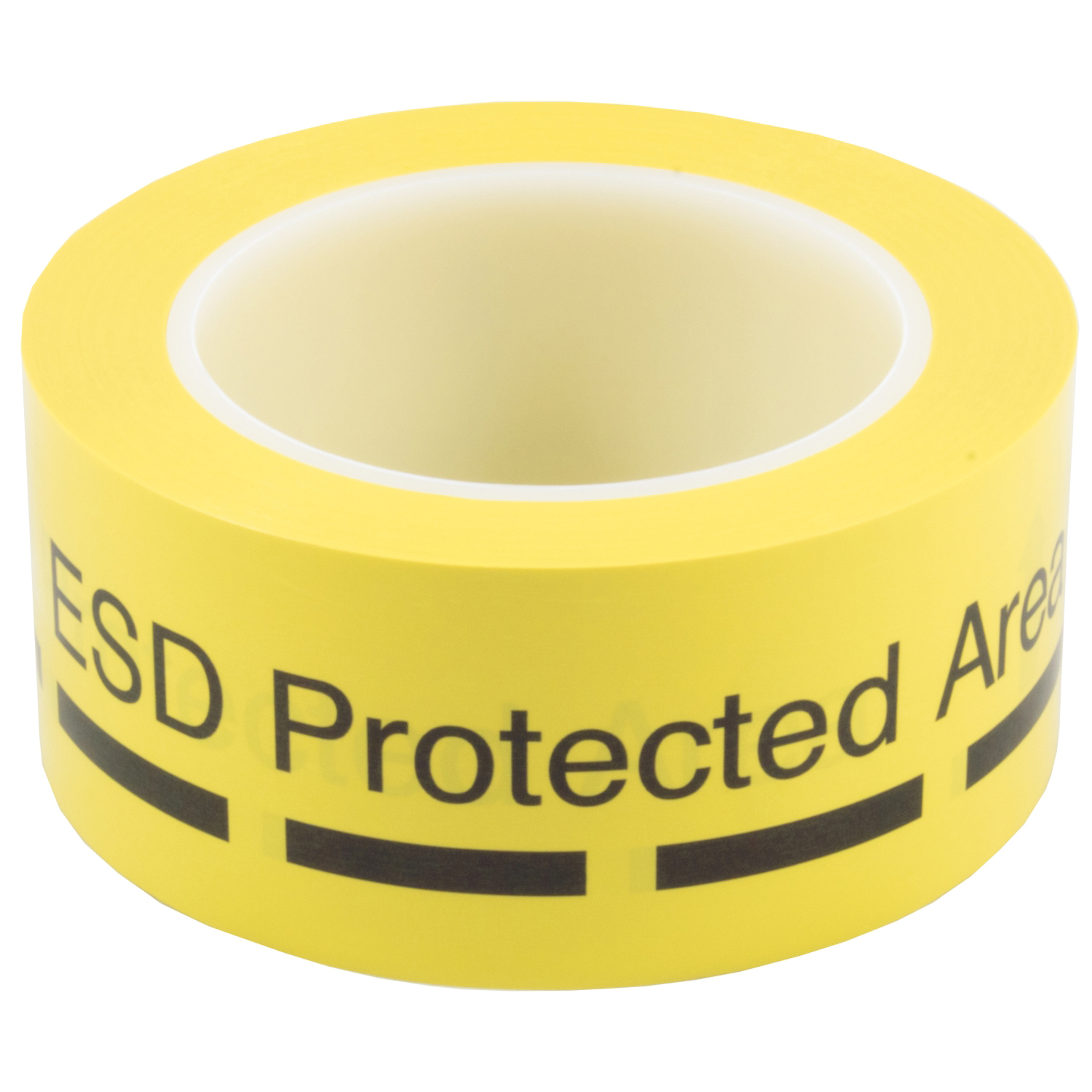

EPA demarcation tape
EPA floor marking tape, ESD Protected Area PVC film Roll length: 33 m Width: 50 mm Thickness: 140 µm

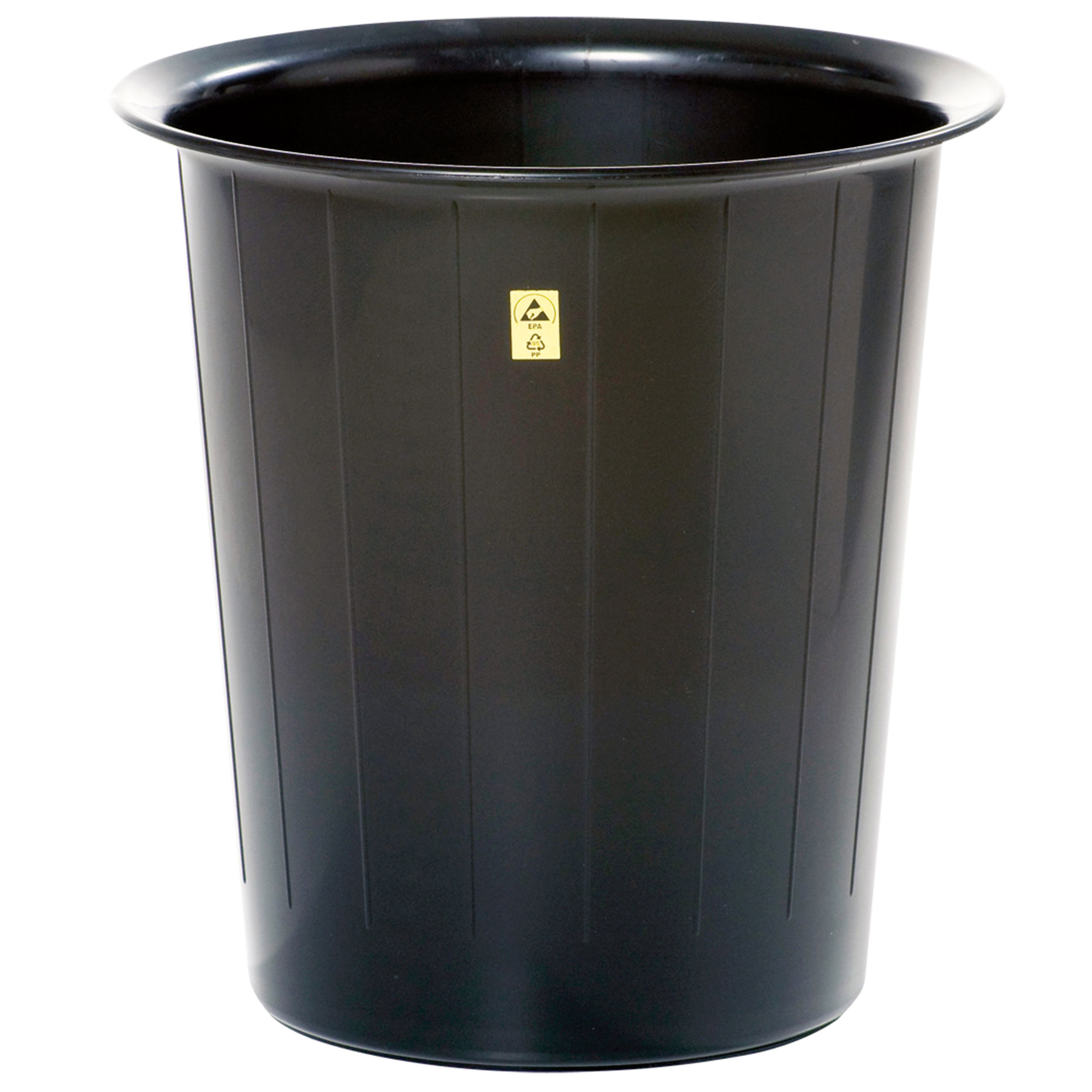

ESD wastepaper bin
Wastepaper bin, round volume-conductive polypropylene with carbon Colour: black with ESD protection symbol and recycling symbol Capacity: 14 litres Dimensions: 300 x 320 mm (diameter x height) Point-to-point resistance Rp-p: 104 - 105 Ω

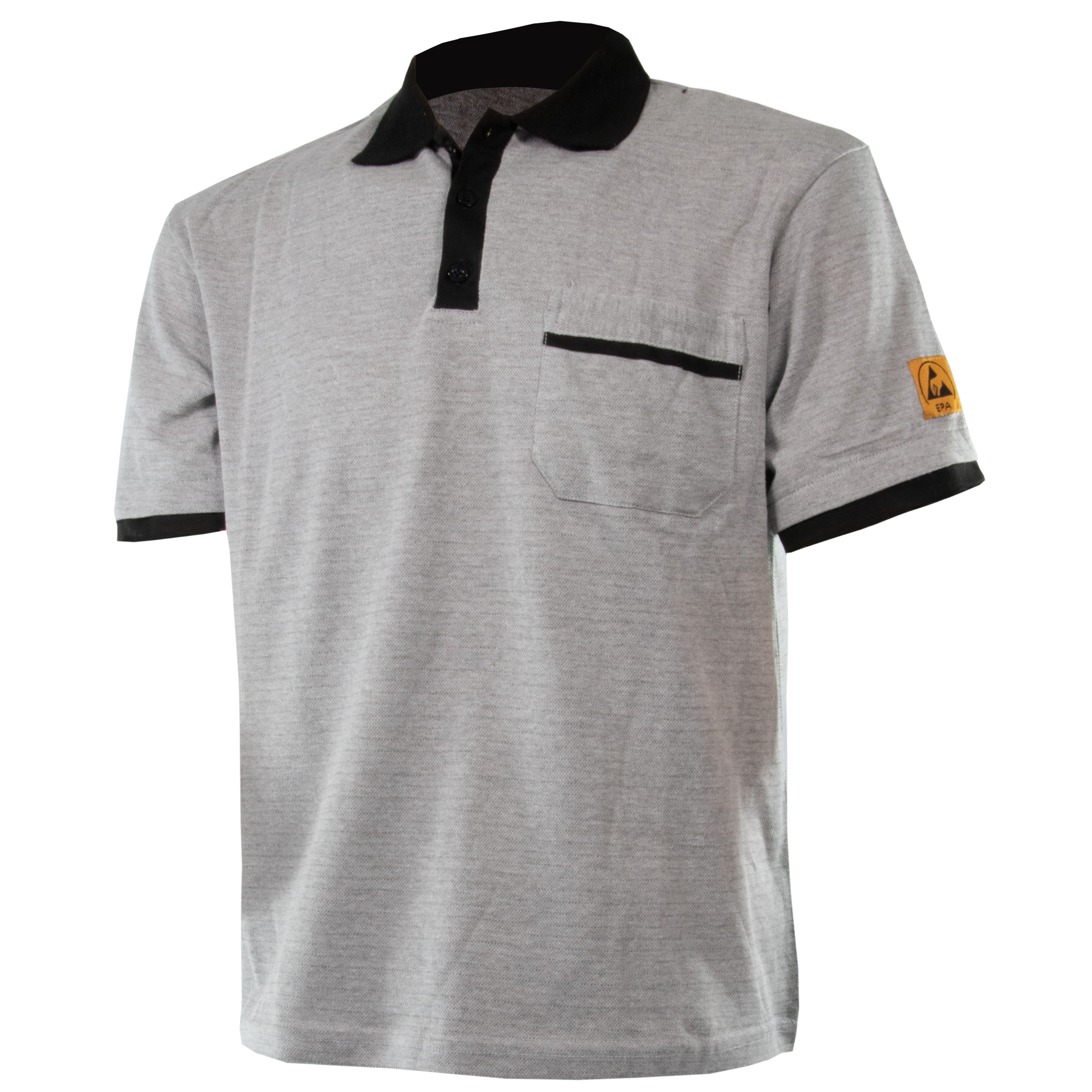

ESD polo shirt
Fastening: 3 buttons Outside pockets: one breast pocket on the left side Fit: Unisex EPA logo on the left sleeve Washable up to 40°C 48% polyester, 48% cotton, 4% carbonised fibres Fabric weight 185 g/m² Grey, black

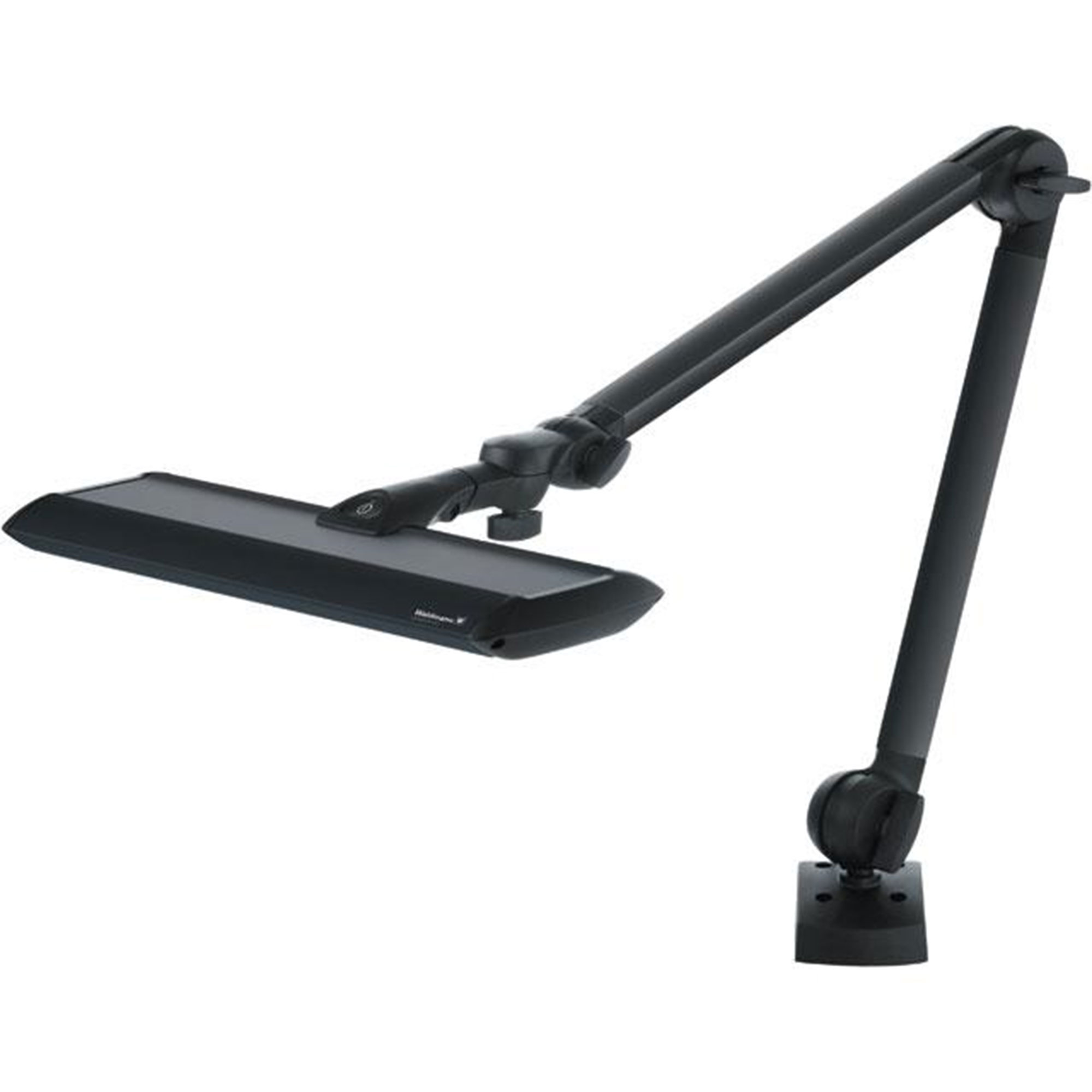

TANEO Universal ESD Light
Wherever the highest demands are placed on vision, uncompromising lighting is indispensable. Whether in manufacturing, assembly, quality assurance or analysis, or in laboratories, the electronics, metalworking or watchmaking industries: the TANEO is a true all-rounder. With application-specific light output, high light quality and ergonomic handling, it ensures optimal working conditions and can be adapted to individual and task-related requirements like no other. Thanks to the TANEO’s uniquely flexible and balanced linkage, any position can be adjusted with minimal effort. The position is held without further action but can be locked in place if required. The linkage also has a particularly large range of motion. And the lamp head is also variably adjustable thanks to a fully articulated 3D head joint. Material & Features Aluminium lamp body with black, conductive paint finish 24 LEDsin neutral white Glare-free thanks to a conical prismatic diffuser 4000 lx and a power consumption of 31 W Easy operation via a multifunction switch The brightness is continuously dimmable down to 10% Simple, precise positioning of the task light via a 3D head joint Power supply: via plug-in power supply unit 100–240 V 50/60 Hz Earthing: via 10 mm push-button Mounting: screw-on flange (base) With ESD marking Packaging 1 piece
Cleaning Stick/Swab PU3923
The antistatic Cleanroom Cleaning Stick/Swab 3923 has a rectangular 100 ppi polyurethane head. The foam is thermally bonded to the handle, eliminating the use of contaminating adhesives or coatings. This swab is free of silicone, amides and phthalates. The head is lint free and removes residue / particles without scratching the surface. Material & Properties Head material: 100 ppi (Z) open pore polyurethane foam Handle material: polypropylene Head weave: Thermally bonded Head width: 16,0mm Head thickness: 9,2mm Head length: 25,5mm Handle width: 6,7mm Handle length: 104,8mm Total length: 130,3mm Free of silicone, amide and DOP Low non-volatile residue Low particle and ion content Excellent solvent absorption capacity Compatible with most common solvents No contaminating adhesives or coatings Packaging 50 pieces in a bag 50 sachets in a carton

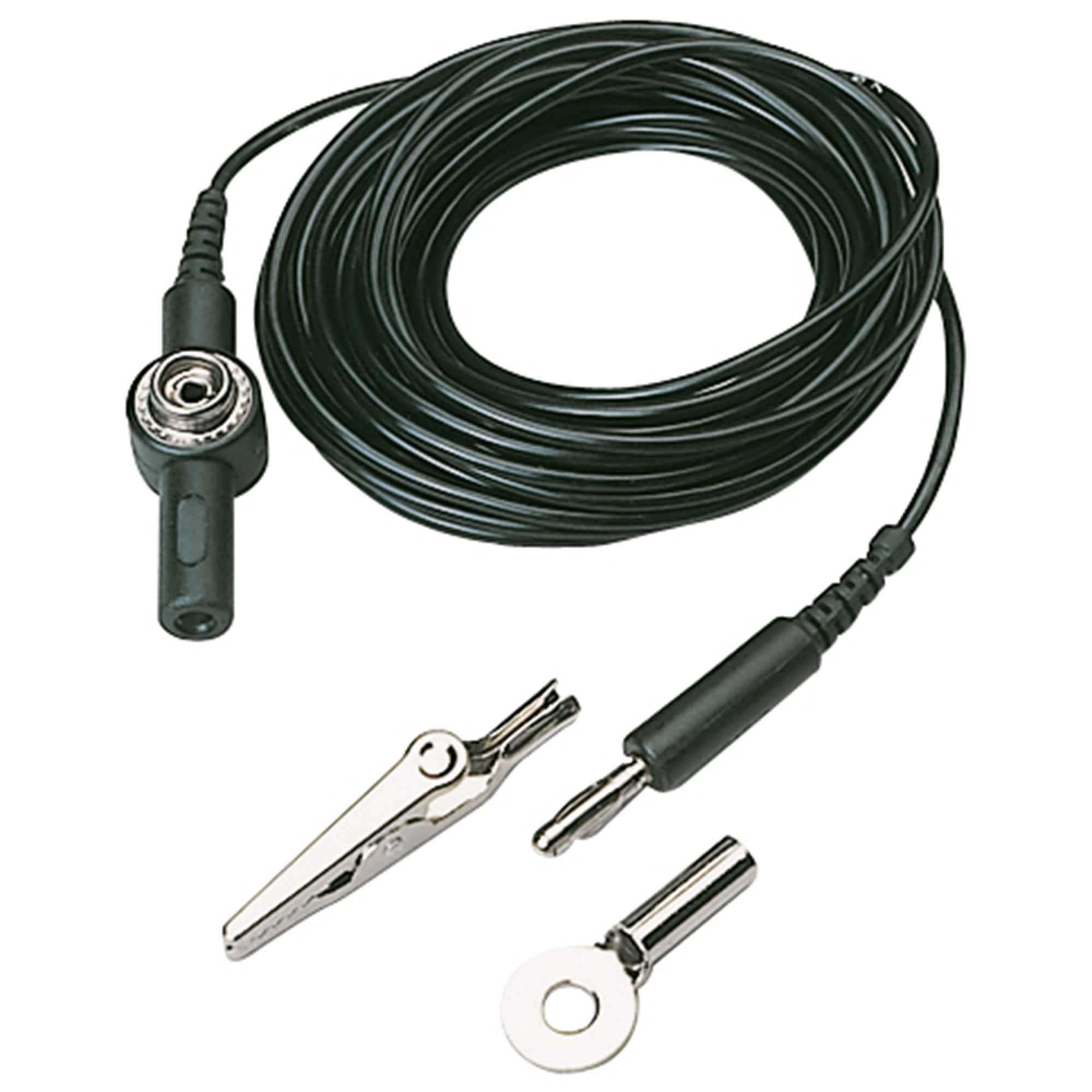

ESD earthing cable
Combined 10 mm push-button with banana plug socket, stackable 1 MΩ safety resistor Colour: Black Length: 3.0 m
Cleaning Swabs/PU-Swab PU3924 ESD
Cleaning Swabs/PU-Swab PU3924 ESD with single pointed head. The antistatic cleanroom swab is made of compressed, open-cell 100 ppi (Z) polyurethane foam that is free of organic contaminants. The foam is thermally bonded to the handle, avoiding the use of contaminating adhesives or coatings. The foam, which is washed and packaged in an ISO Class 5 cleanroom, has a low particle and ionic content. It has excellent compatibility with most common solvents, including acetone, as well as excellent absorbency and solvent absorption capacity, and the foam head is compressed and has good strength. The pointed, non-abrasive foam head is designed for cleaning small, slit areas. The swab handle is ESD-safe and made of polypropylene. Material & properties Material head: 100 ppi (Z) open-cell head bonding thermally bonded Handle material: Polypropylene Head width: 3.2 mm Thickness head: 3.2 mm Head length: 10 mm Width of handle: 2.5 mm Handle length: 66 mm Total length: 76 mm Handle colour: Transparent ESD properties Handle resistance 1 x 1010 Ohm/Sq Particles 0.5 µm <3000 counts / swab Non-volatile residue DI water <0.05 mg / swab IPA <0.11 mg / swab Ion content Chloride <0.08 µg / swab Sulphate <0.29 µg / swab Total anions <0.37 µg / swab Free from silicone, amide and DOP Low non-volatile residues Low particle and ion content Excellent solvent absorption capacity Compatible with most common solvents No contaminating adhesives or coatings Micromechanical cleaning Remove contamination from drives Effectively clean small, hard-to-reach areas with solvents such as IPA Remove flux residues and excess materials For general cleaning Packaging 500 pieces in a bag 50 bags in a box
Cleaning Stick/Swab 1273-PF ESD
Cleaning Stick/Swab 1273-PF ESD with flat semicircular polyurethane head. The foam is thermally bonded to the handle, eliminating the use of contaminating adhesives or coatings. The soft head is lint-free and removes residue/particles without scratching the surface. Can also be used to apply adhesives and other liquids. The swab has a surface resistivity of <1x1011 Ω and is excellent for use in semiconductor , laser, electronics and medical applications. Material & Properties Material head: Static dissipative foam Material handle: Stat-Rite® static dissipative polypropylene Diameter head: 4 mm Diameter handle: 2.3 mm Length head: 14,2 mm Length of handle: 67.5 mm Total length: 68 mm Surface resistance <1 x 1011 ESD properties (permanently retained) Low ionic contamination Connection: Thermal weld seam Application of adhesives or other fluxes Removal of particles and residues. Application in electronics manufacturing and medical technology Safe for static-sensitive components Can be used with IPA and DI water or dry Good water absorption Non-fluffing Non outgassing Non-contaminating Soft and abrasion resistant Packaging 50 pieces in a static dissipative resealable poly zip bag20 bags in a carton
Nylon Glove Han-Fit
The Han-Fit cleanroom glove is an IAB own-brand product. It is made from high-quality, seamless nylon, is uncoated and therefore offers a very high level of comfort. For this reason, the glove is also used as an inner glove in cleanrooms. The nylon gloves from the Han series are very robust and ideal for general work in clean environments and cleanrooms from ISO 7 upwards. Specification Material : Nylon Size : 7/S - 11/XXL Colour : white, with coloured cuff Thickness : 1.00 mm ± 0.1 mm Length : approx. 240 mm ISO Class : 7 Packaging : 10 pairs in a bag 24 bags in a box (240 pairs) Areas of application: Automotive industry Precision assembly Construction Logistics Packaging Characteristics Uncoated Ambidextrous High wearing comfort / Excellent breathability Non-slip grip Low-linting Suitable as an underglove beneath disposable gloves Silicone-free Knitted cuff, colour-coded by size
